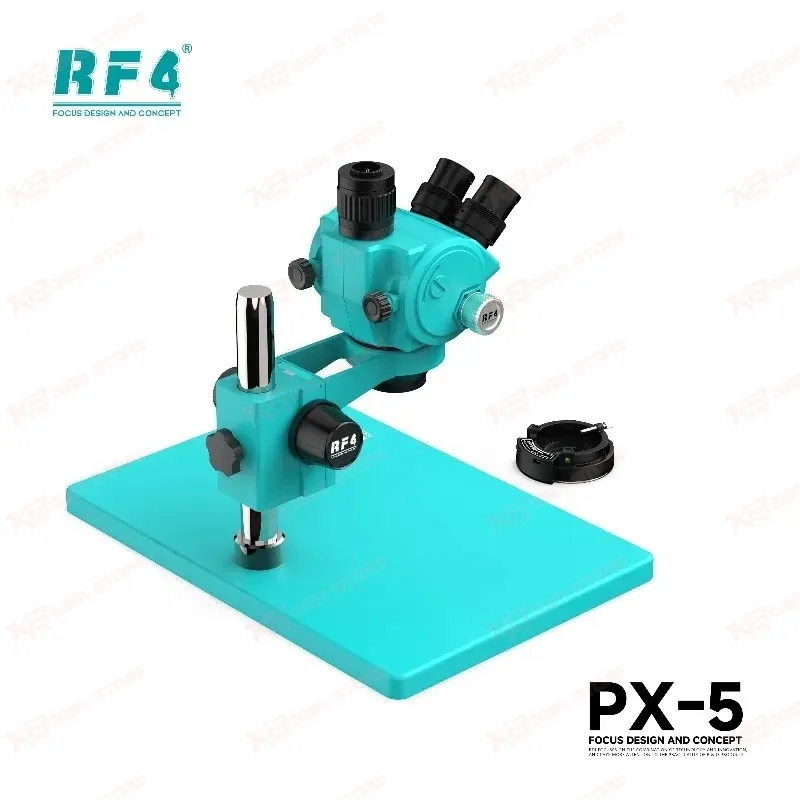

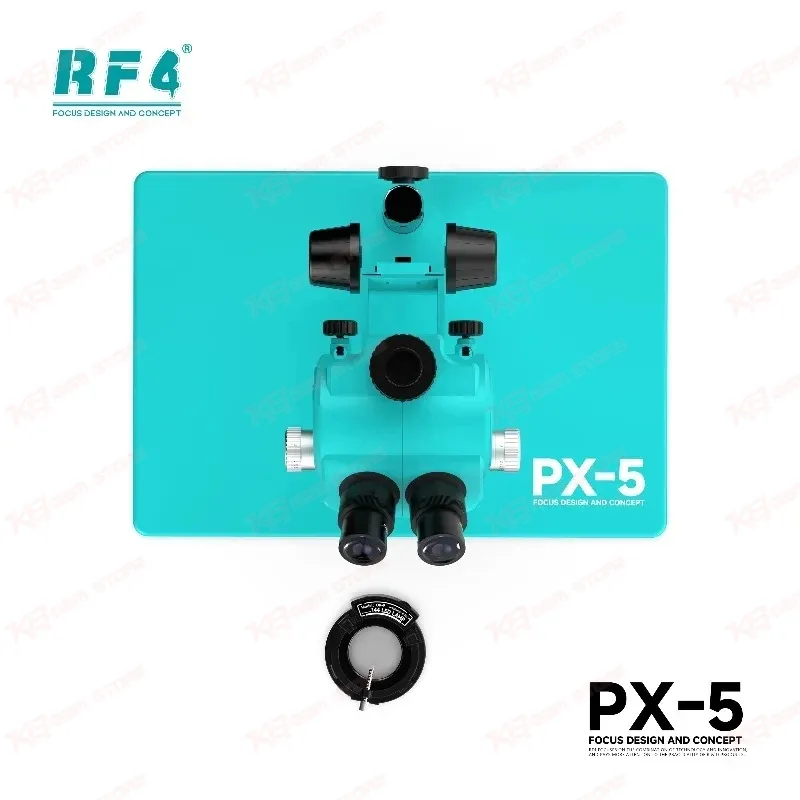

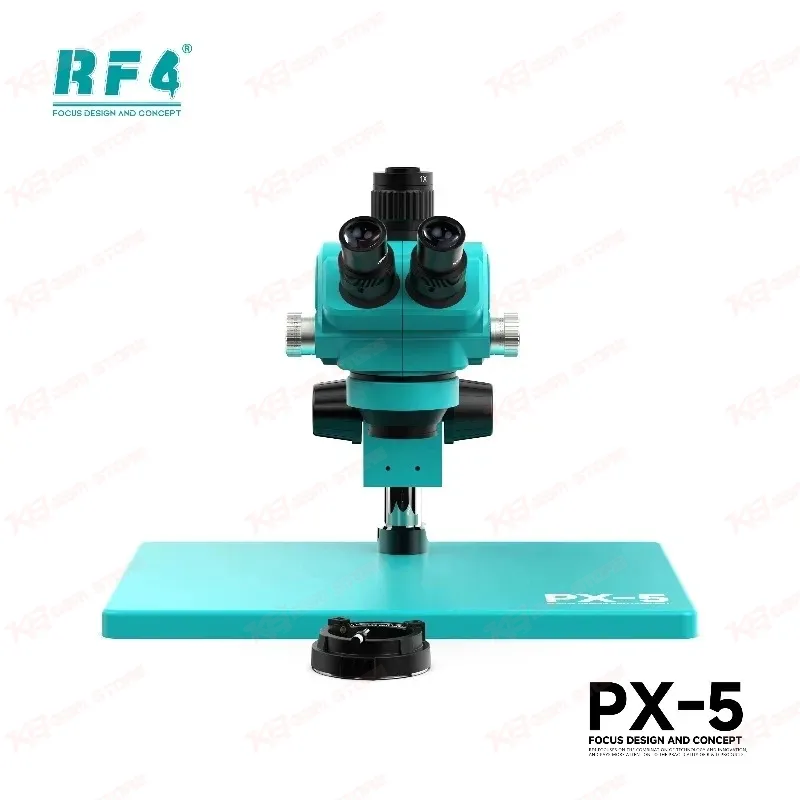

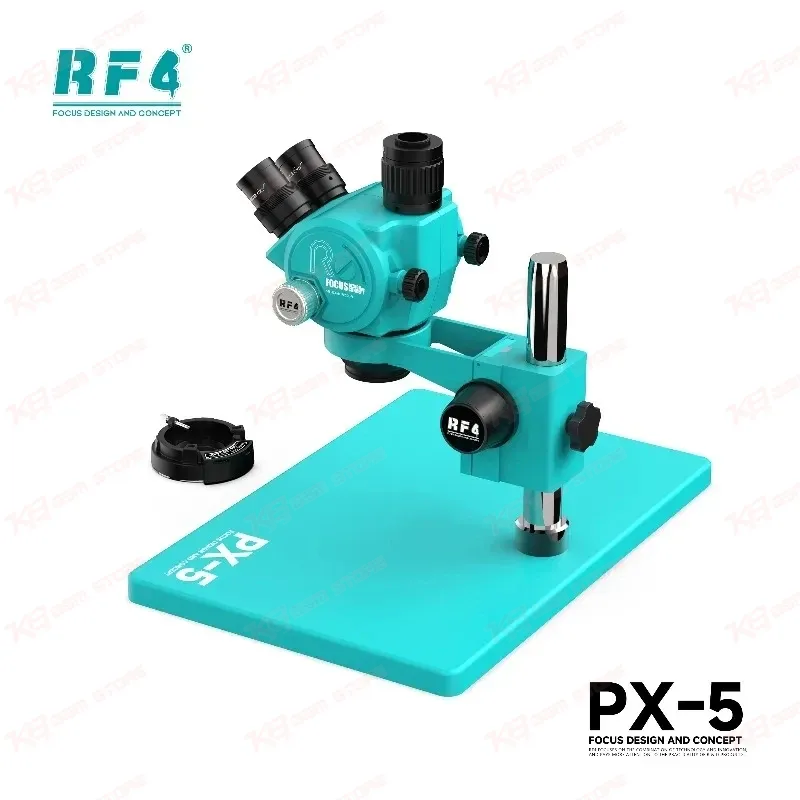

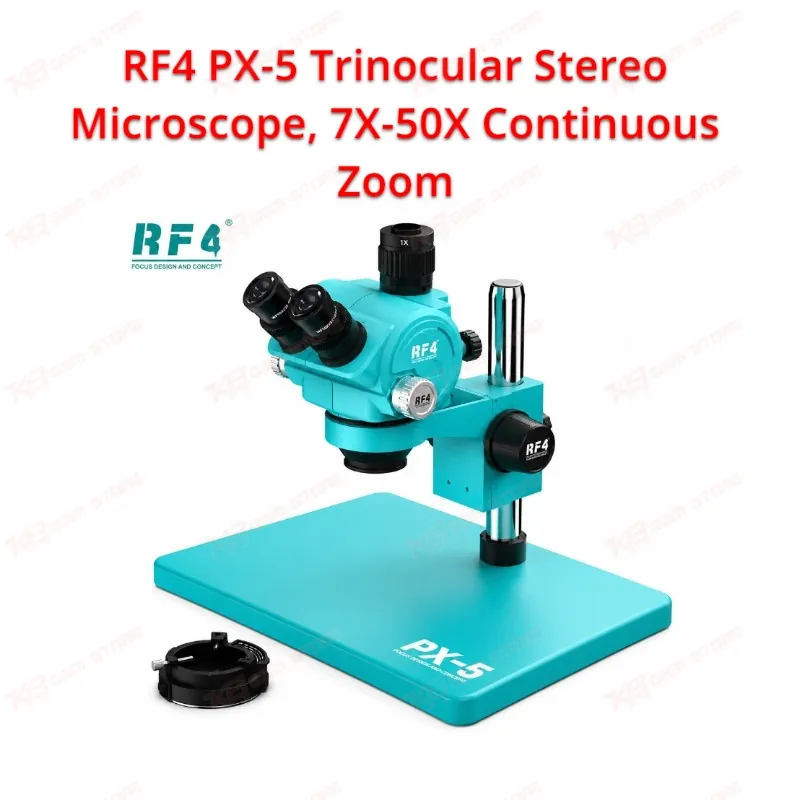

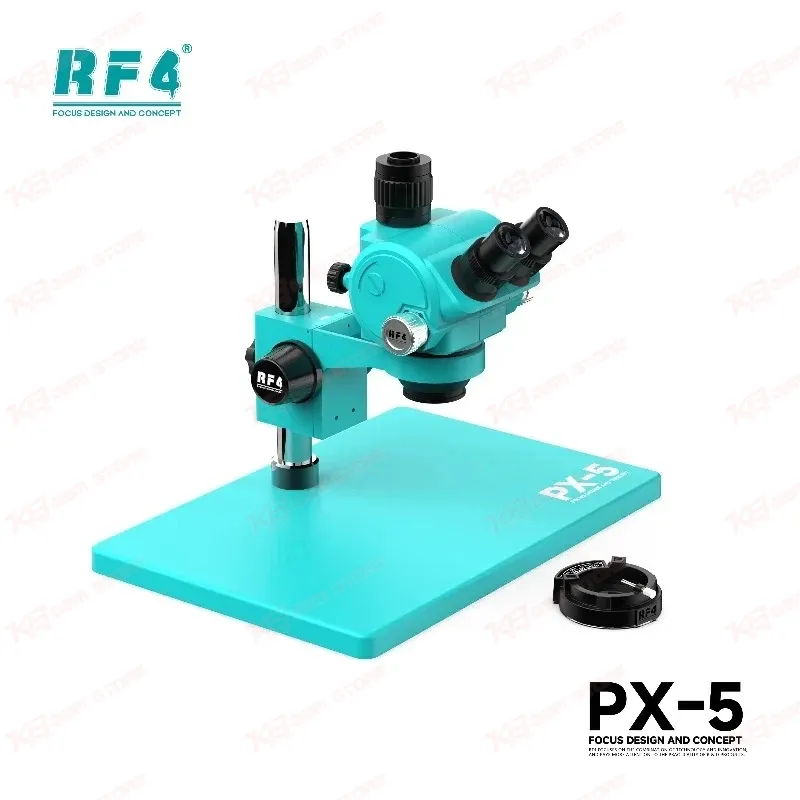

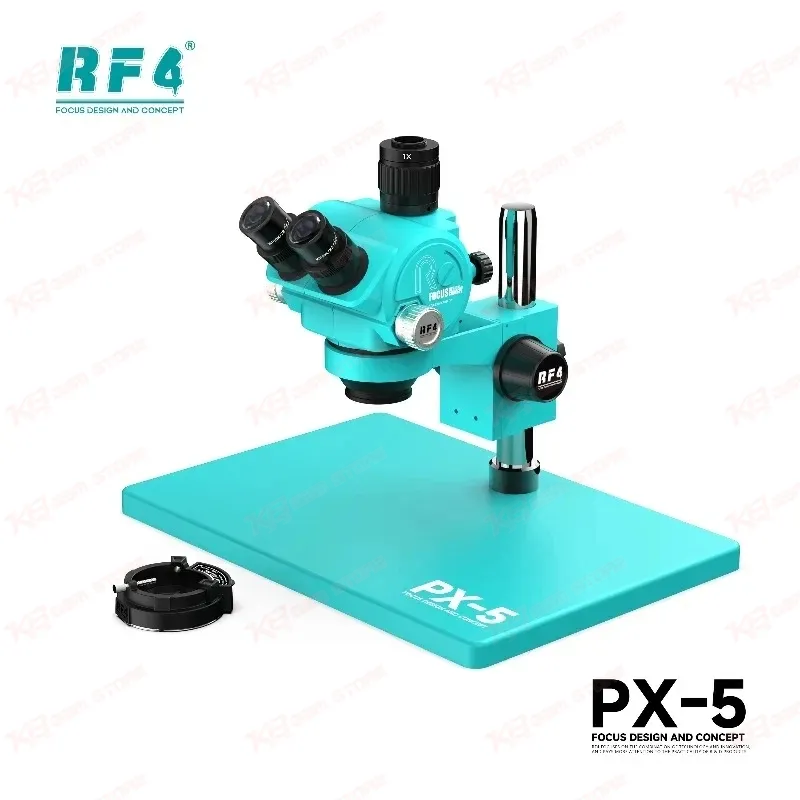

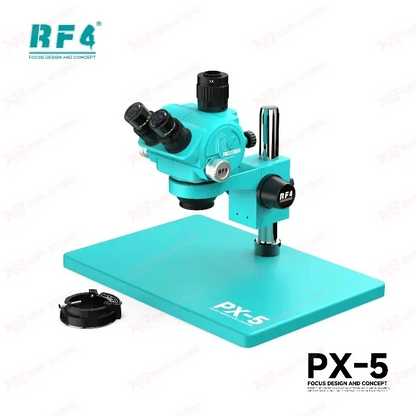

RF4 PX-5 Trinocular Stereo Microscope | 7X–50X Continuous Zoom

RF4 PX-5 Trinocular Stereo Microscope | 7X–50X Continuous Zoom

Rs.56,000.00 PKR
Rs.56,000.00 PKR
Sale Sold out
Shipping calculated at checkout.

The RF4 PX-5 is a professional trinocular stereo microscope with 7X–50X continuous optical zoom, WF10X/22mm wide-angle eyepieces, and a 0.48Pro CTV camera port for synchronous monitor viewing. Built for electronics repair, PCB inspection, and precision work.

MST-SOLDERING-TOOLS-1259

⚖️ Weight: 5.0 kg

  • Safe & Secure Payment
  • Fast Delivery
  • WhatsApp Support
View full details

Description

The RF4 PX-5 Trinocular Stereo Microscope (model RF7050) is engineered for professionals who demand clarity, precision, and flexibility in optical inspection tasks. Whether you are performing PCB soldering, electronics repair, gemological examination, or micro-assembly work, this microscope delivers exceptional performance.
At the heart of the PX-5 is a 7X to 50X continuous optical zoom system with a 0.7X–5.0X objective lens. The seamless zoom allows you to transition from wide-field overview to fine detail inspection without changing lenses, saving time and improving workflow efficiency. The generous 100mm standard working distance provides ample space to maneuver tools or components beneath the lens.
The WF10X/22mm wide-angle eyepieces (30mm diameter) provide a large, comfortable field of view with minimal eye strain — ideal for extended working sessions. Both eyepieces support full interpupillary and diopter adjustment, making this microscope suitable for a wide range of users.
The 45° inclined, 360° rotating trinocular head accommodates a camera or monitor via the built-in 0.48Pro CTV camera port, which maintains synchronous zoom between the eyepieces and the connected display. This is invaluable for team collaboration, training, or documentation purposes.
Durability is built in. All lenses are treated with an HD multi-layer coating that resists dust, oil vapour, and high temperatures — protecting the internal optics and maintaining image fidelity over years of professional use. The metal 7-gear zoom knob delivers tactile, repeatable magnification stops for consistent results.
Package includes: 1× RF4 PX-5 Trinocular Microscope Head, 1× Dustproof Protective Lens, 1× 0.48 CTV Adapter Lens.

Key Features

  • 7X–50X continuous optical zoom with sharp, distortion-free imaging across the full magnification range
  • WF10X/22mm wide-angle eyepieces with 30mm fitting — large field of view, fatigue-free extended use
  • 45° inclined trinocular head with 360° rotation for flexible positioning and camera attachment
  • 0.48Pro CTV camera adapter enables synchronous zoom between monitor and eyepieces simultaneously
  • Standard working distance of 100mm — ample clearance for handling larger or taller objects
  • Both eyepieces support interpupillary and diopter adjustment to suit individual users
  • HD-coated dust-proof objective lens resists dust, oil, and smoke for consistent image clarity
  • Metal 7-gear zoom knob provides precise, repeatable magnification control
  • Dust-proof, oil-proof, and high-temperature resistant lens coating ensures long-term durability

Specifications

Model RF4 PX-5 (RF7050)
Total Magnification 7X – 50X (continuous zoom)
Objective Lens 0.7X – 5.0X
Eyepiece WF10X / 22mm (wide-angle, adjustable)
Eyepiece Tube Diameter 30mm
Head Type Trinocular, 45° inclined, 360° swiveling
Working Distance 100mm (standard)
Zoom Knob Metal knob, 7-gear zoom
Camera Port 0.48Pro CTV (synchronous zoom)
Package Contents 1× Microscope Head, 1× Dustproof Lens, 1× CTV Lens

FAQ

Q1 : What is the total magnification range of the RF4 PX-5 Stereo Microscope?
The RF4 PX-5 offers a continuous zoom magnification range of 7X to 50X, achieved through its 0.7X–5.0X objective lens combined with WF10X/22mm wide-angle eyepieces. This allows smooth, stepless zoom from wide-field overview to detailed close-up inspection without changing lenses.
Q2 : What type of head does the RF4 PX-5 use?
The RF4 PX-5 features a trinocular head that is inclined at 45 degrees and can rotate a full 360 degrees. The third tube (trinocular port) is equipped with a 0.48Pro CTV adapter for connecting a camera or monitor with synchronous zoom capability.
Q3 : What is the working distance of this microscope?
The standard working distance of the RF4 PX-5 is 100mm. This provides comfortable clearance between the objective lens and the object being examined, making it easy to use tools, tweezers, or soldering equipment underneath the lens during work.
Q4 : Can I connect a camera or monitor to the RF4 PX-5?
Yes. The RF4 PX-5 includes a 0.48Pro CTV camera connector on the trinocular port. This allows you to connect a compatible camera or monitor, and importantly, the zoom remains synchronized between the eyepieces and the connected display simultaneously.
Q5 : Are the eyepieces adjustable for different users?
Yes. Both eyepieces support interpupillary distance adjustment (eye distance) as well as diopter adjustment. This makes the microscope suitable for users with different eye spacing or vision differences, ensuring a comfortable and accurate viewing experience for everyone.
Q6 : What size are the eyepieces and what field of view do they offer?
The RF4 PX-5 comes with WF10X/22mm wide-angle eyepieces with a 30mm tube diameter. The 22mm field of view is larger than standard eyepieces, reducing eye fatigue during long working sessions and allowing more of the subject to be seen at once.
Q7 : Is the RF4 PX-5 suitable for electronics and PCB repair?
Yes, the RF4 PX-5 is widely used for PCB inspection, SMD soldering, electronics repair, and micro-assembly work. The 100mm working distance, 7X–50X continuous zoom, and distortion-free optics make it an ideal tool for detailed electronic work.
Q8 : How does the lens protect against dust and oil contamination?
The RF4 PX-5 is equipped with HD multi-layer coated lenses that are dust-proof, oil-proof, and resistant to high temperatures. A separate dustproof protective lens cover is also included in the package to prevent contamination when the microscope is not in use.
Q9 : What is included in the package?
The RF4 PX-5 package includes: 1x RF4 Trinocular Stereo Microscope Head, 1x Dustproof Protective Lens, and 1x 0.48 CTV Adapter Lens. Please note this listing is for the microscope head only — stand, light source, and camera are not included unless stated separately.
Q10 : What types of microscopes are compatible with the WF10X/22mm eyepieces?
The WF10X/22mm eyepieces with 30mm diameter fitting are compatible with stereoscopic, fixed magnification, and continuous zoom microscopes that accept 30mm eyepiece tubes, making them versatile for use across multiple microscope models.
