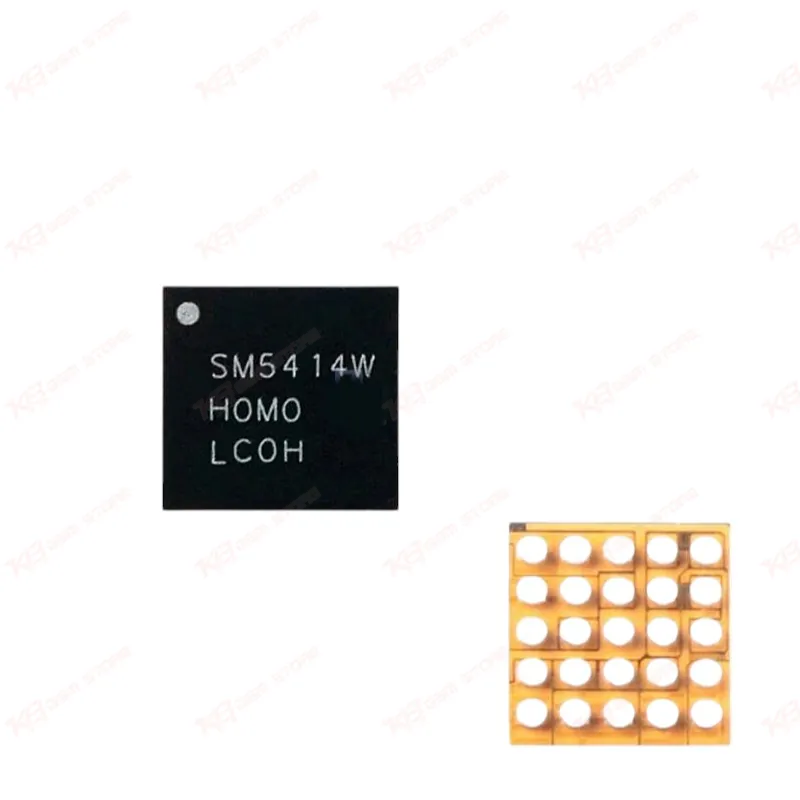

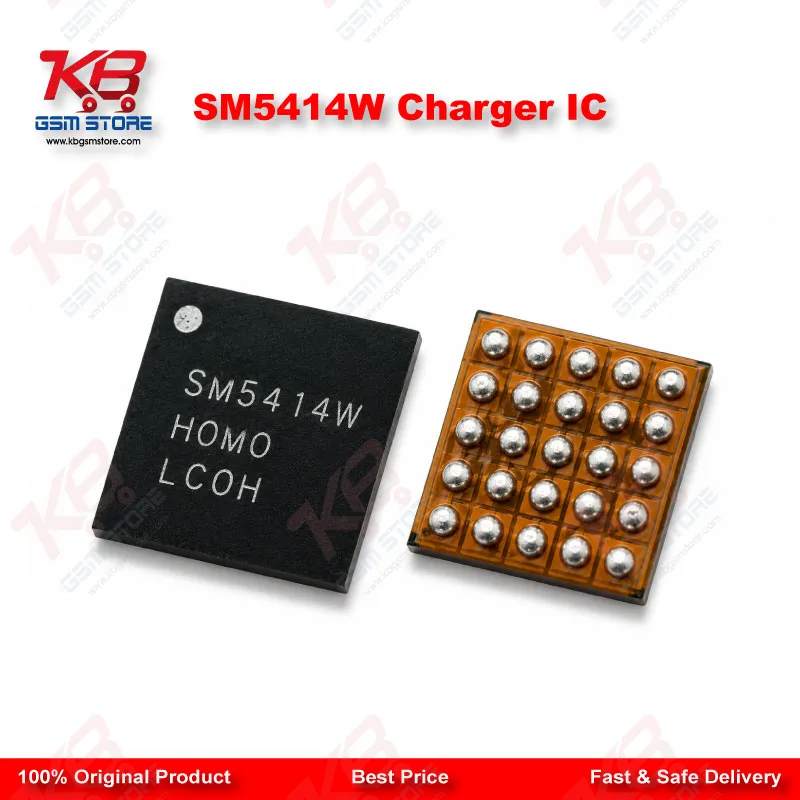

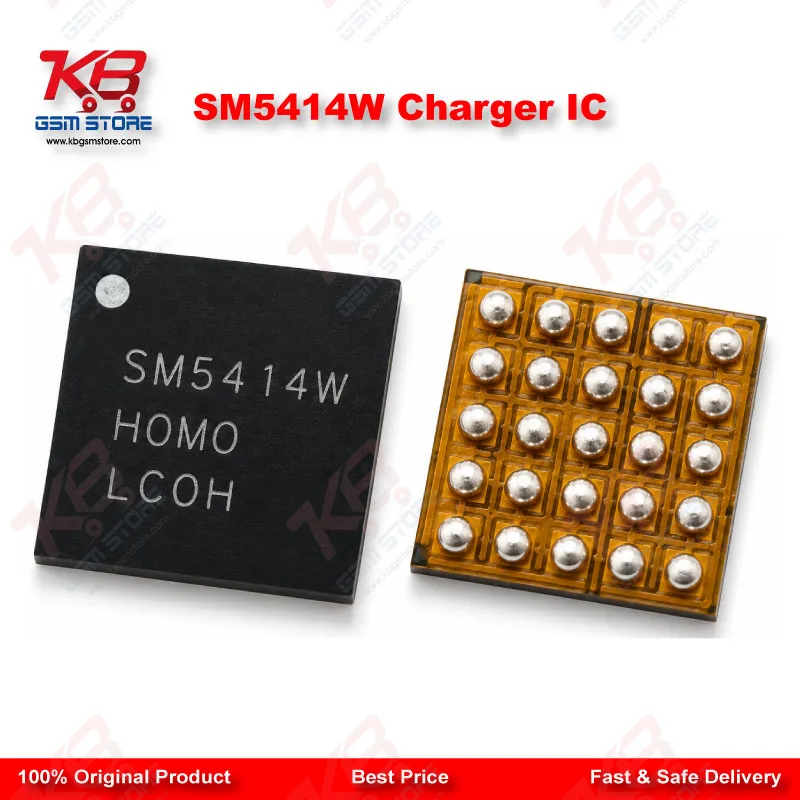

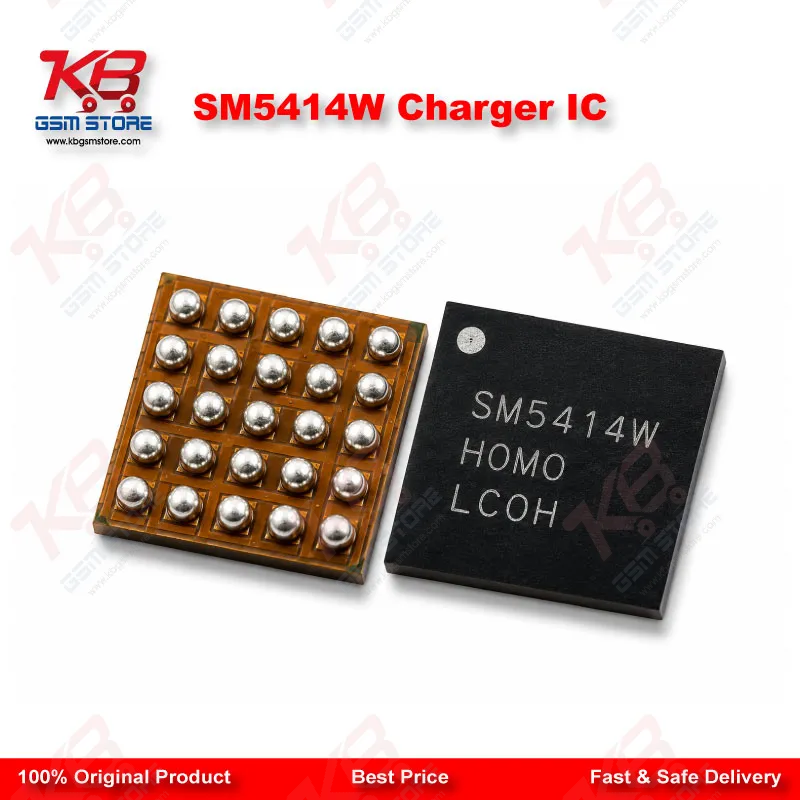

SM5414W Charger IC

Charging faults are one of the most common jobs that land on a GSM repair bench, and the SM5414W sits right at the center of that problem on a wide range of Samsung boards. Silicon Mitus designed this chip as a 1-cell Li-Ion switching charger with intelligent power-path management, which means it doesn't just push current into the battery — it manages the path between the charger input, the system load, and the battery itself, so the phone can run and charge at the same time without dropping performance.When a customer brings in a phone that's not charging, charging slow, or getting hot near the charging port with no visible physical damage, your diagnostic path usually leads to this IC. A dead charging IC shows up as no charging response even with a known-good cable and charger, charging animation stuck without percentage movement, or board not registering the charger connection at all. Once you've ruled out the charging port, battery connector, and filter coils, the SM5414W becomes the next suspect — especially on boards with a history of liquid exposure or a short circuit event upstream.The dual-output architecture is what separates this from a basic linear charger IC. Intelligent power-path switching lets the chip route power efficiently between charging the battery and powering the system rails, which reduces heat buildup during the charge cycle — a detail that matters when you're reworking a board that's already run hot once. Rated for 2.5A charge current, it's built to handle the demands of modern Samsung charging circuits without the IC itself becoming the weak point.On the bench, this comes down to a straightforward IC change karna job once you've confirmed the fault. Preheat the board, protect surrounding components, remove the damaged SM5414W with your hot air station, clean the pads, and reball or direct-place the replacement. Because it ships in a DSBGA chip-scale package, precision matters — a good microscope and steady hands make the difference between a clean reflow and a lifted pad. Pair it with proper reballing stencils and flux suited for chip-scale packages to avoid solder bridging on reinstall.This IC is also relevant beyond straightforward "dead after flash" charging complaints. Boards that show hardware fault symptoms like intermittent charging, charging that works only at certain cable angles, or charging current that never ramps up properly often trace back to a power-path IC that's degraded rather than fully dead — testing with a bench power supply and current monitoring helps you separate an IC fault from a battery or port issue before you commit to the rework.For a workshop doing regular Samsung motherboard repair, keeping the SM5414W in stock alongside your other power-path and PMIC chips means you're not waiting on parts when a charging-fault board comes in. It's a small, low-cost component next to the labor and reputation cost of a callback, and getting the original part rather than a mismarked clone protects both your repair time and your customer relationship.Every unit here is original stock, tested before it ships, and packed with proper ESD protection so it reaches your bench in the same condition it left testing — no dead-on-arrival chips wasting your rework time.
