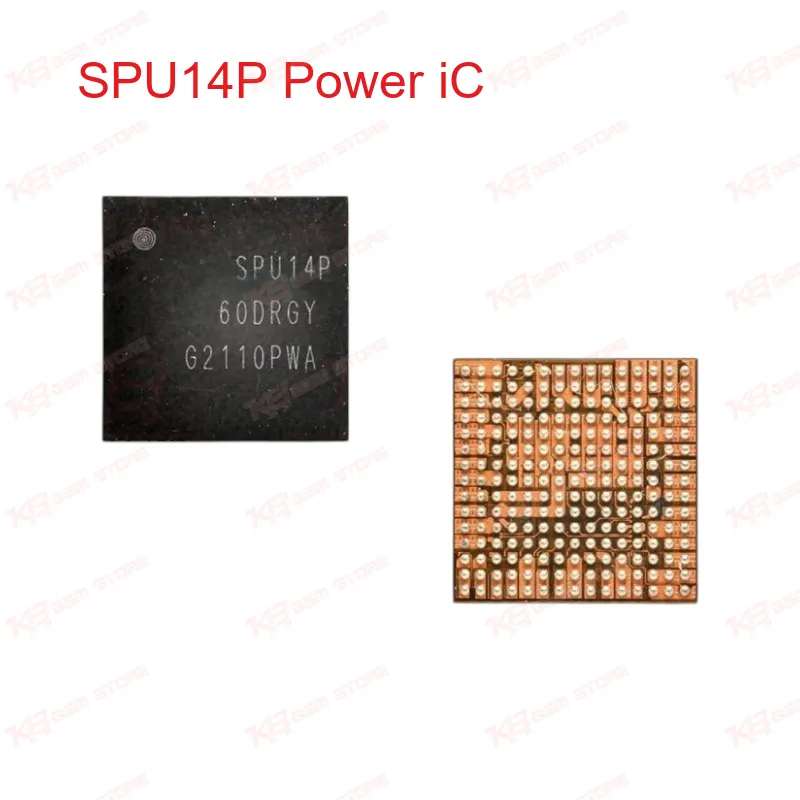

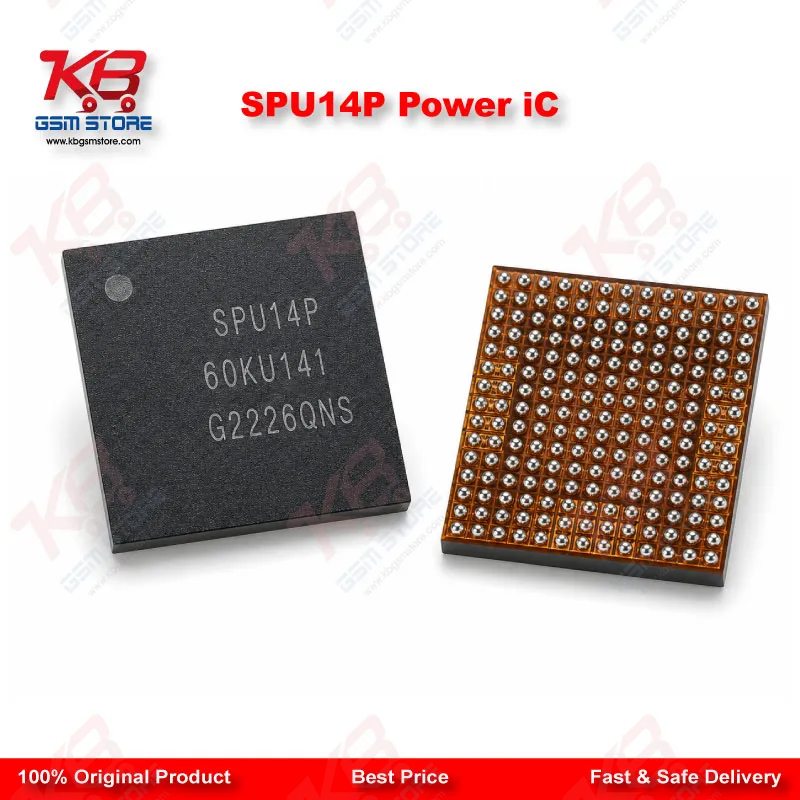

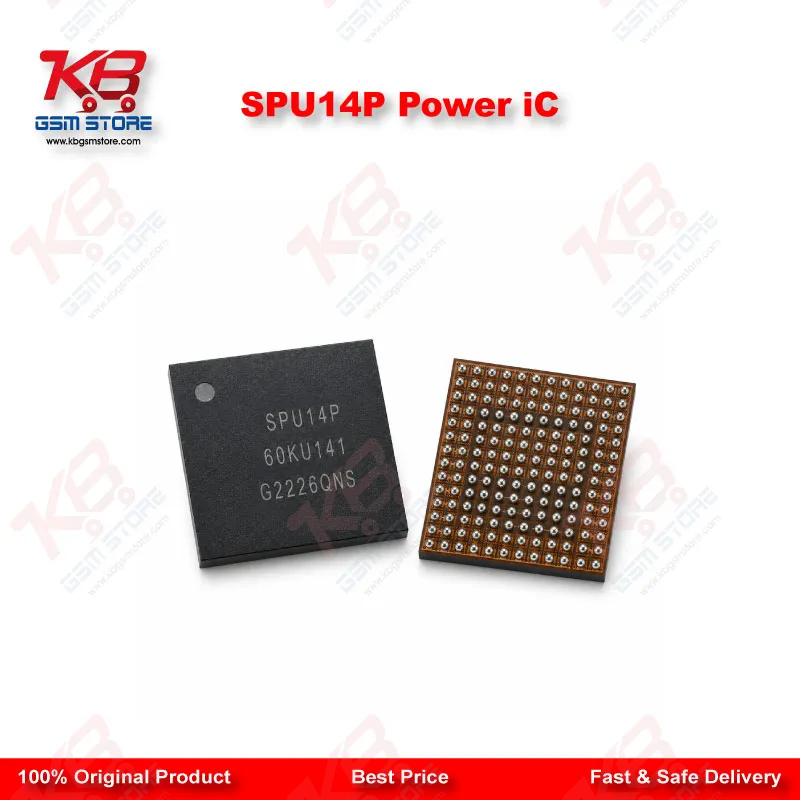

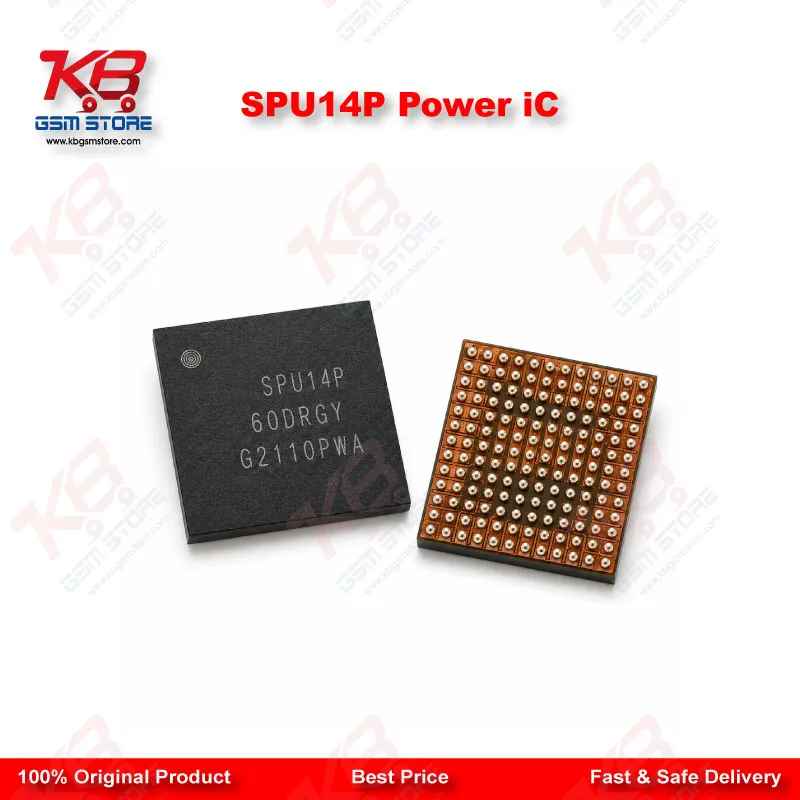

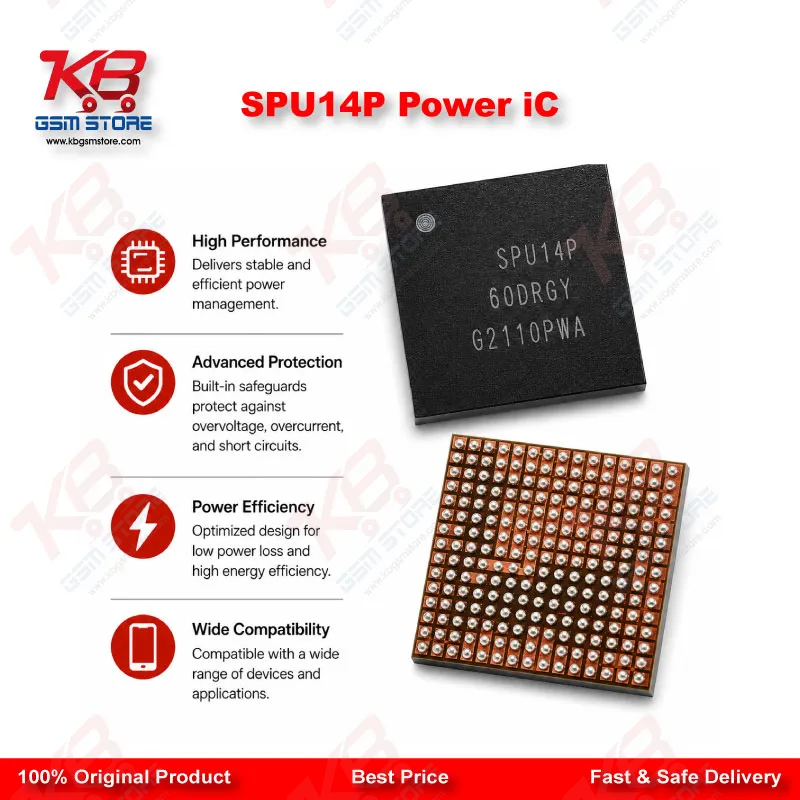

SPU14P Power iC

When a Samsung Galaxy A53 or A536 board comes to your bench completely dead, refuses to charge, or shows unstable power behavior, the SPU14P Power IC sits high on your suspect list. This chip works as the board's power management unit, handling voltage regulation and distribution to the processor, memory, and other core circuits. Once this IC develops a fault, you typically see symptoms like a phone that won't power on, a board that draws no current on your bench power supply, or intermittent shutdowns during use.Replacing this IC brings back stable voltage delivery across the board. You handle it the same way you handle any BGA power chip: remove the faulty component with hot air, clean the pad thoroughly, reball with matching solder balls, and reflow the new SPU14P in place. Precision matters here — the pads sit close together, so you need a steady hand, a good microscope, and controlled hot air temperature to avoid damaging neighboring components.Before you commit to replacing this IC, run your standard diagnostic checks first. Measure the board with a multimeter to confirm the fault traces back to the power IC rather than a shorted component elsewhere on the board. Check for physical damage on the chip itself — burn marks, cracked casing, or lifted pads often point directly to this component. If you find a short on the power rail during your continuity test, and the short clears once you remove the suspect IC, you've confirmed your diagnosis before you solder in the replacement.This IC ships as a genuine SMD component, matching the original factory footprint on Samsung A53/A536 boards. That means you don't need to modify pads or run jumper wires to fit it — a clean removal and reball gets the new chip seated correctly. For technicians running high volume repair work, keeping a few of these in stock saves turnaround time on a fault pattern that shows up regularly on this board family.Power IC faults on this board series often connect to other common issues you'll run into on the bench: a dead phone after a bad flash, a board that shows charging problems even with a known-good charger and cable, or a device stuck on the logo screen because the power rails never stabilize enough to complete the boot sequence. In each of these cases, isolating the power IC as the root cause — rather than replacing components based on guesswork — saves you rework time and protects your reputation with the customer.This component fits into your existing eMMC/UFS and ISP workflow tools. Once you've confirmed the fault with your test box or ISP pinout tool, the SPU14P replacement becomes a straightforward hardware fix rather than a software repair. Pair it with a quality reballing kit, a PCB holder to keep the board steady during rework, and a hot air station capable of tight temperature control, and this repair becomes a routine bench job instead of a guessing game.Stock genuine SPU14P chips at your workshop, and you cut the wait time on one of the more frequent hardware faults reported on Samsung A53/A536 boards. Whether you run a solo repair bench or manage a service center handling multiple boards a day, having verified, tested power ICs on hand keeps your turnaround fast and your repairs reliable.
