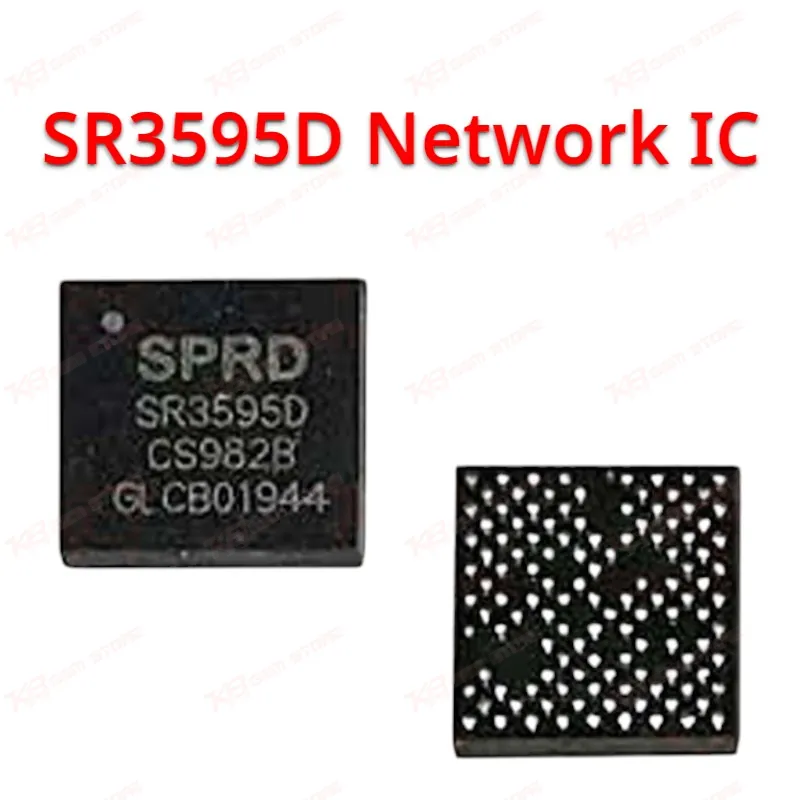

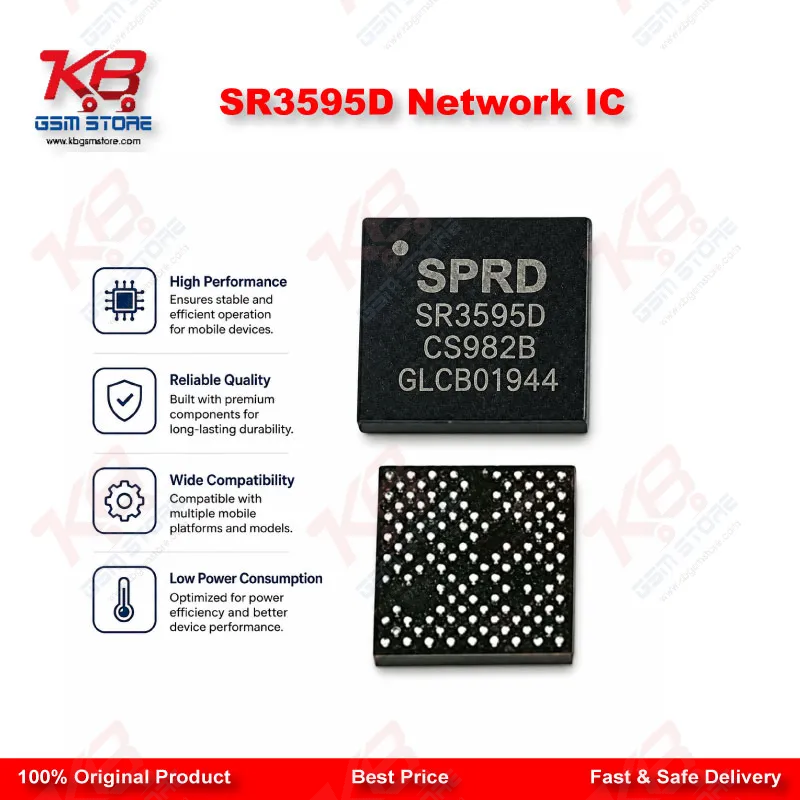

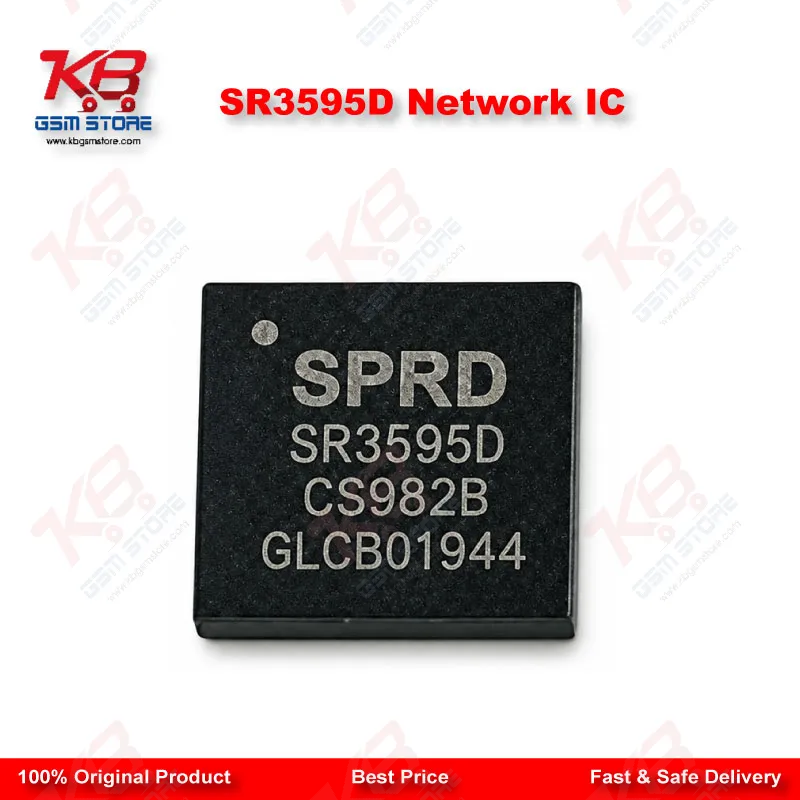

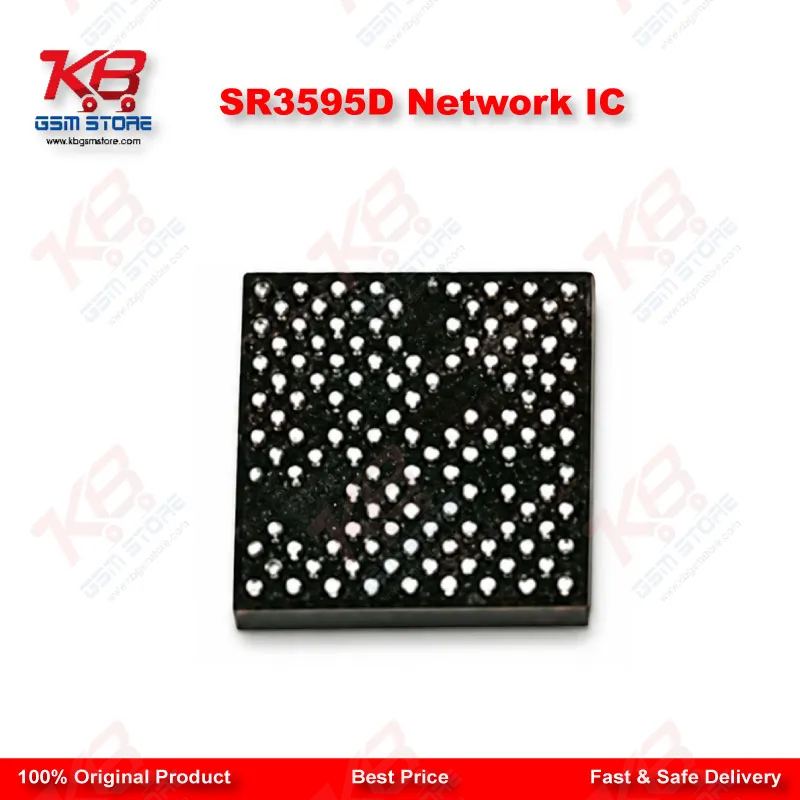

SR3595D Network IC

Network IC repair mein sabse zyada confusion tab hoti hai jab technician RF transceiver ko power IC samajh kar galat troubleshoot kar deta hai. SR3595D is neither — it's a dedicated RF transceiver, engineered specifically for signal transmission and reception, not power delivery. Samajhna zaroori hai ke yeh chip UNISOC ke baseband platform ke sath directly interface karti hai using a Digital I/Q link, jahan analog transmit signals ADC ke zariye digital form mein convert hote hain aur RF front-end ke through baseband tak pohanchte hain.

Architecture ki baat karein to SR3595D ek fully integrated single-chip solution hai jo GSM/EDGE, WCDMA, TD-SCDMA, aur LTE (dono FDD aur TDD variants) ko ek hi silicon par support karta hai. Isme 6 single-ended transmit ports hain, jabke receive side par 12 primary aur 11 diversity single-ended ports maujood hain — total 23 RX paths, jo diversity reception ke through call drop aur weak signal issues kam karte hain. Har transmit output internally 50Ω par matched hai, jo external matching components ki zaroorat kam karta hai aur board design ko compact rakhta hai.

Jo cheez is IC ko technician ke liye important banati hai woh iska clock architecture hai. SR3595D teen alag 26MHz reference clock outputs deta hai, plus ek built-in 32kHz clock bhi provide karta hai — dono baseband synchronization ke liye critical hain. Agar yeh clock outputs faulty ho jayein, phone "dead after flash," "hang on logo," ya intermittent network drop jaisi symptoms show kar sakta hai, jo aksar galat troubleshoot hoti hain jab tak technician IC ko directly test na kare.Repair bench par is IC ka sabse common use case network-related faults hain: koi signal na aana, IMEI missing, SIM not detected, ya baseband se related boot loop issues. Chip removal se pehle continuity check aur short test zaroori hai, kyunke SR3595D ke around short-circuit ya moisture damage ka pattern common hai, especially un devices mein jo liquid damage se guzre hon. Reballing ke waqt 123-ball BGA package aur 0.35mm pitch ka dhyan rakhna zaroori hai — stencil ka sahi match na hona bridging ya cold joint create kar sakta hai, jo dobara wahi network fault wapis la sakta hai.Power consumption ke lihaz se yeh chip ultra-low power design follow karta hai, jo battery drain minimize karta hai jab device idle mode mein ho — yeh un devices ke liye important hai jahan customer "battery jaldi khatam hoti hai" ki complaint le kar aata hai alongside network issues. Chip RoHS aur Halogen-Free compliant bhi hai, jo genuine UNISOC-sourced parts ki ek pehchan hai — counterfeit units mein yeh markings aksar missing ya inconsistent hoti hain.Field mein confirmed use case Lenovo K13 Note ke network problem fix mein dekha gaya hai, jahan SR3595D IC change karne se signal aur network detection restore hua. Broader compatibility UNISOC/Spreadtrum chipset platform tak extend hoti hai, lekin har device-level compatibility publicly documented nahi hai — is liye har job se pehle board-level schematic ya reference se confirm karna best practice hai.Yeh IC un technicians ke liye stock rakhna zaroori hai jo Unisoc-based budget aur mid-range devices par regularly kaam karte hain, jahan network faults ek recurring bench job hoti hai.
