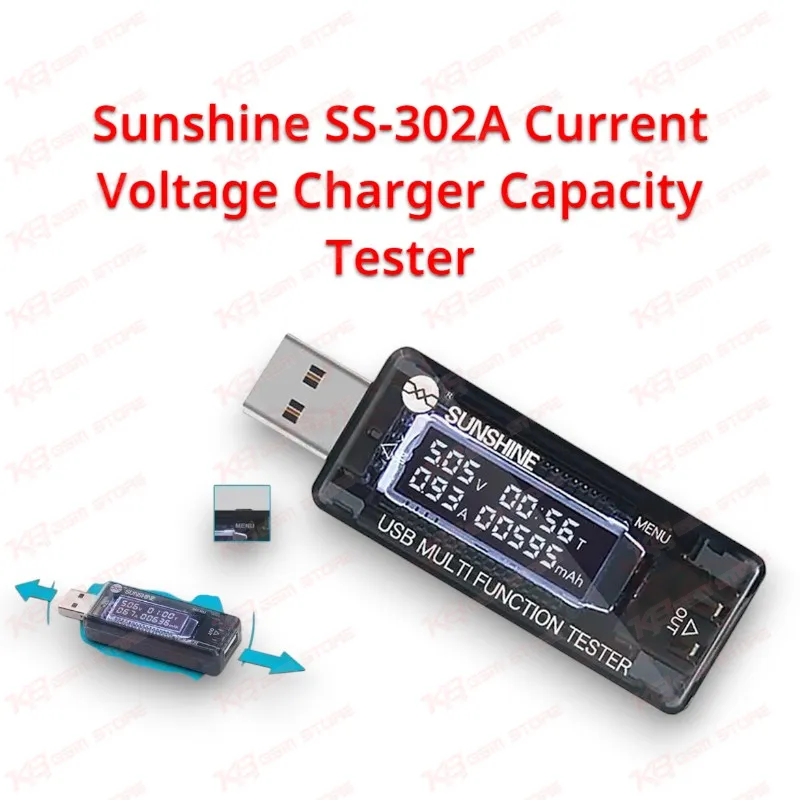

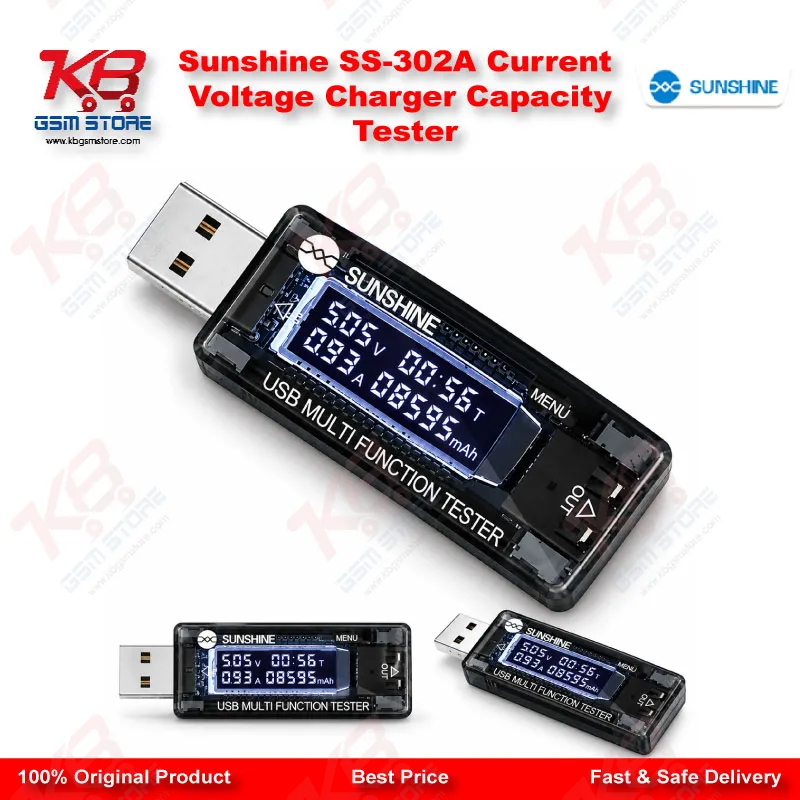

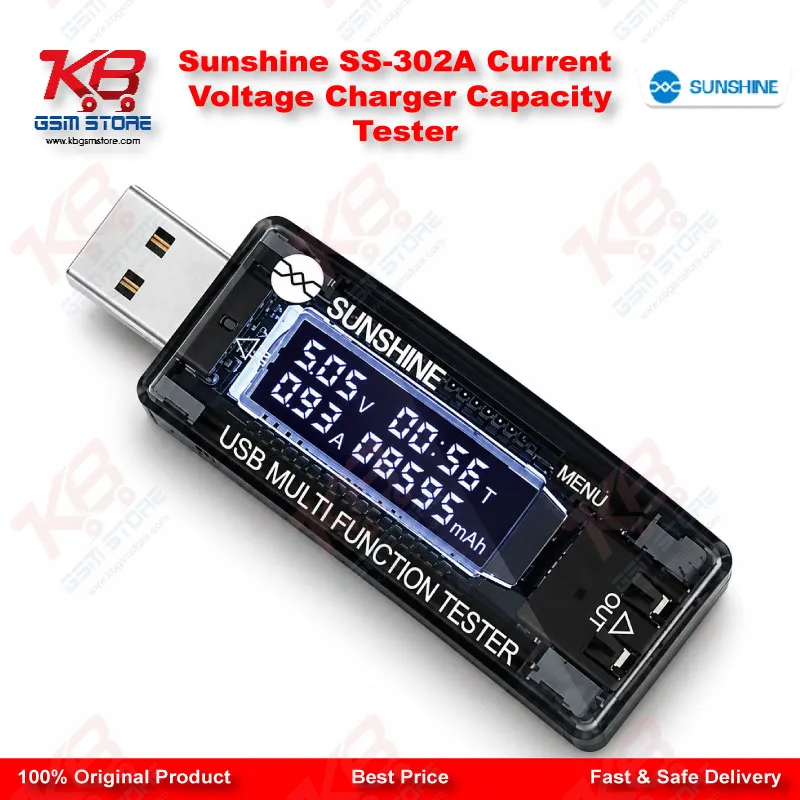

Sunshine SS-302A Current Voltage Charger Capacity Tester

A charging issue lands on your bench every day. The phone charges slowly, disconnects, or shows nothing at all. Before you pick up the hot air gun or open the board, you need to know whether the charger, the cable or the phone causes the fault. The Sunshine SS-302A USB Current Voltage Charger Capacity Tester answers that in seconds.You plug the SS-302A between the charger and the device. The display shows live voltage and live current, so you see exactly what the phone draws. A healthy phone pulls steady current. A dead phone pulls nothing. A short on the board pulls too much. That one reading tells you which repair path to take.The tester covers a 2.8–30V input range and displays current from 0 to 5A. That range handles ordinary 5V chargers and wide-range fast-charging adapters. QC4.0 support lets you test fast-charging behaviour, so you can check whether a charger really delivers higher voltage when the phone asks for it. Many “slow charging” complaints come from worn cables or weak adapters, and this tool exposes both quickly.Capacity testing gives you a second job for the same unit. The meter tracks charge and discharge data and displays capacity up to 99999mAh. You connect a power bank or battery pack, run it, and read how much capacity it actually delivers. Customers bring in power banks that claim big numbers and deliver little. You now have a number to show them instead of an argument.Reading the data stays simple. The tester records real-time charge voltage and current, and it also reads discharge voltage and current. A power-off memory function keeps your data when you unplug it, so you do not lose a long test because you moved the tester. When you want a fresh capacity run, hold the reset button for three to five seconds and the recorded data clears.Here is where the SS-302A fits in your repair workflow:Incoming check: Test the customer’s own charger and cable first. Half of the “charging problem” jobs end here.Dead phone diagnosis: Connect a dead phone and watch the current. Zero draw points toward a hardware fault, and you move on to the multimeter and your soldering station.After repair: Confirm the phone charges at the expected current after you change a charging IC or a connector. You see the result before you return the phone.Software jobs: After a flash, a dead-after-flash phone still shows whether it draws current, which helps you separate a software problem from a hardware fault.Stock and warranty checks: Test new chargers and power banks before you sell them. Your customers trust the shop that proves its accessories.Use the SS-302A alongside your other bench tools. A multimeter measures points on the PCB, a bench power supply feeds the board directly, and this tester watches the USB side. Together they cover charging port faults, battery faults and adapter faults without guesswork. Shops that also stock Test Boxes, ISP Pinout Tools, Hot Air Stations and Soldering Stations tend to add this tester as the first diagnostic step in front of those tools.The unit stays compact, so it fits in your toolbox or sits permanently on the bench next to your charging station. It needs no separate power source. It takes power from the USB line it measures, which keeps your setup free of extra cables.You get a straightforward tool with a clear job. It does not flash, program or repair anything. It tells you where the fault lives, so you spend your time on the right repair. For repair shop owners in Pakistan who handle charging issue complaints all day, that saves bench hours and cuts return visits.
