VC7643-11 Power Amplifier IC

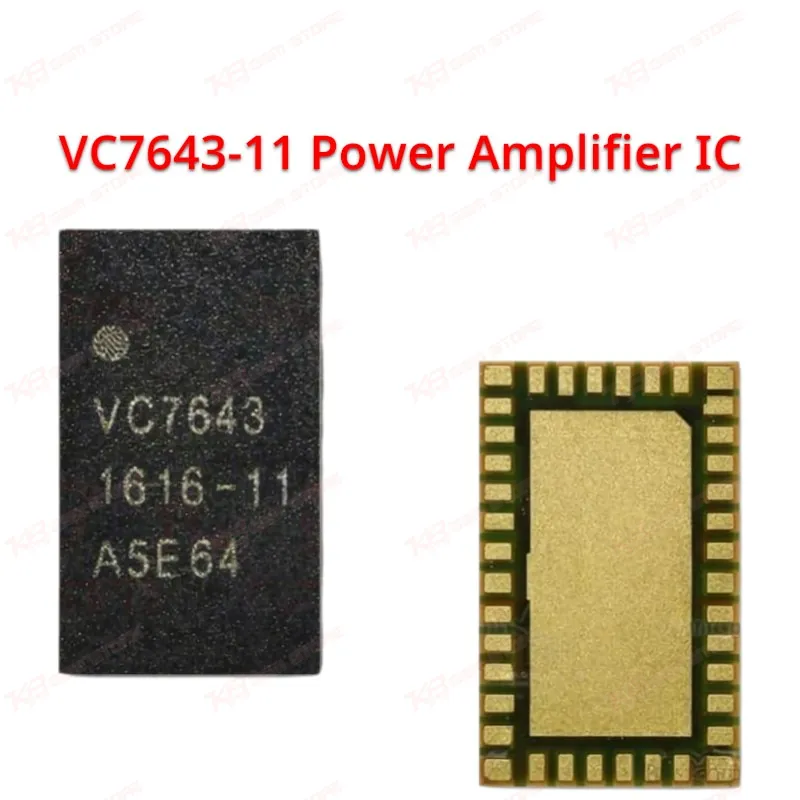

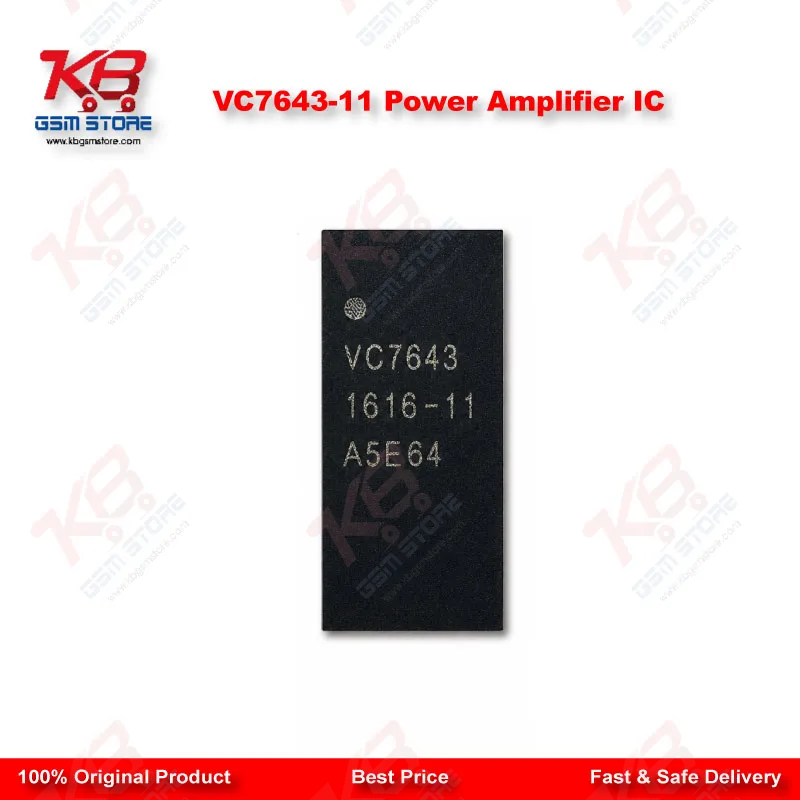

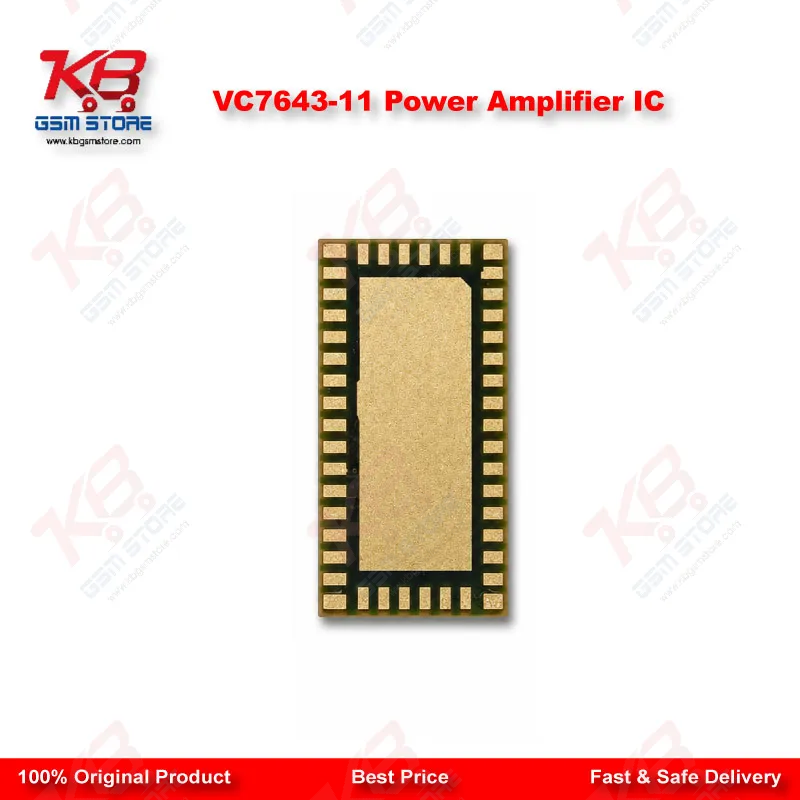

Jab koi Redmi ya Realme handset network issue ke sath bench par aaye — no signal, weak signal, ya signal aata-jaata rahe — VC7643-11 aksar us fault ka center point hota hai. Ye VANCHIP ki RF power amplifier IC hai jo phone ke transmit path mein baithti hai aur baseband se aane wale signal ko sahi power level tak boost karti hai taake network tower tak stable connection bane.VC7643-11 VANCHIP ke VC7643 family ka hissa hai, jo multi-mode multi-band (MMMB) FDD aur TDD dono operation ko support karta hai. Iska matlab ye single IC different network bands aur duplex modes ke sath kaam kar sakti hai, jo modern budget aur mid-range Android phones mein common hai. VANCHIP ye family specifically un platforms ke liye design karta hai jahan MTK, SPRD, ya Qualcomm chipset use hota hai — yahi wajah hai ke ye IC un teeno ecosystem ke phones mein dikhti hai.Board par ye IC QFN package mein aati hai — chhoti, multi-pin, surface-mount footprint jisay hot air station ke through remove aur reflow kiya jata hai. Reballing ya direct replacement dono methods technician apne setup aur stencil availability ke hisaab se choose karte hain.Real-world repair scenarios jahan ye IC kaam aati hai:Sabse common case hai "no network" ya "no service" — phone SIM insert hone ke baad bhi signal bars nahi dikhata. Doosra case hai weak signal — call drop hota rehta hai ya data speed consistently kharab rehti hai jabke doosre phones usi location par theek signal pakadte hain. Teesra scenario hai intermittent signal loss — kabhi network aata hai kabhi chala jata hai, jo aksar cold solder joint ya PA IC ke partial fault ki nishani hoti hai.In sab cases mein pehla step hamesha diagnosis hai — schematic ya boardview check karke confirm karo ke fault RF PA section mein hai, na ke antenna switch, RF connector, ya baseband IC mein. Multimeter aur signal tracing se short ya open circuit check karna zaroori hai IC change karne se pehle, warna galat IC badalne se paisa aur waqt dono zaya hote hain.Replacement ke waqt precision matter karti hai — QFN package ka pitch tight hota hai, is liye achi microscope aur controlled hot air temperature use karna zaroori hai taake adjacent components disturb na hon. IC lagane ke baad reflow paste ki quality aur alignment dobara check karo, kyunke thora sa bhi misalignment dobara wahi fault repeat kar sakta hai.Genuine VANCHIP stock use karna is repair mein especially important hai, kyunke clone ya mismatched RF ICs aksar signal instability ya complete network failure create kar dete hain jo diagnose karna mushkil ho jata hai. Verified original part number match karna — VC7643-11 exactly, na ke family ka koi doosra suffix — successful outcome ke liye critical hai.Ye IC un technicians ke liye stock rakhne layak hai jo regularly Redmi aur Realme network faults handle karte hain, kyunke ye ek high-frequency repair scenario hai in device series mein.
