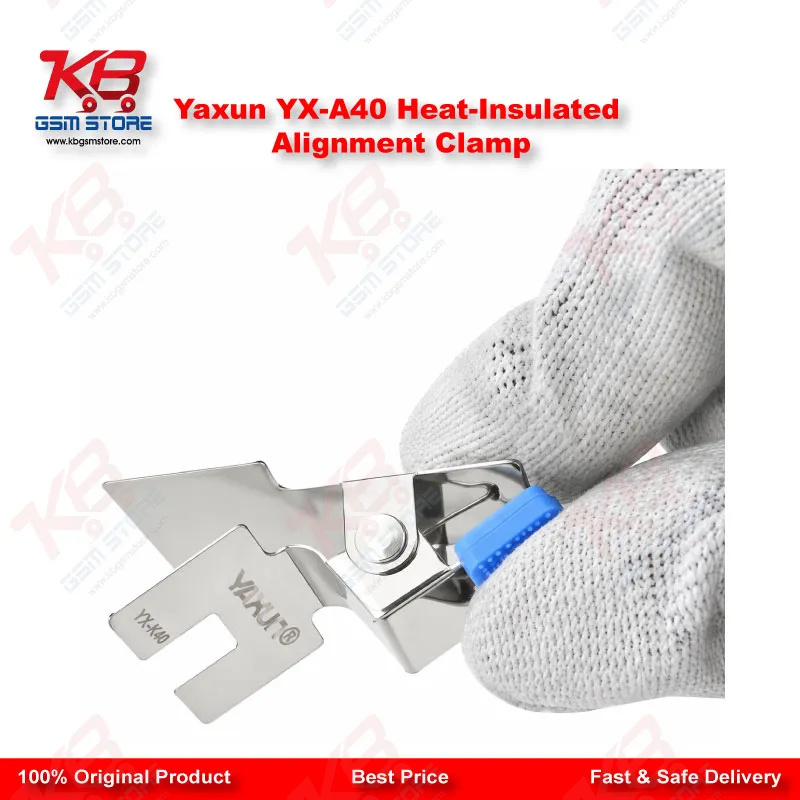

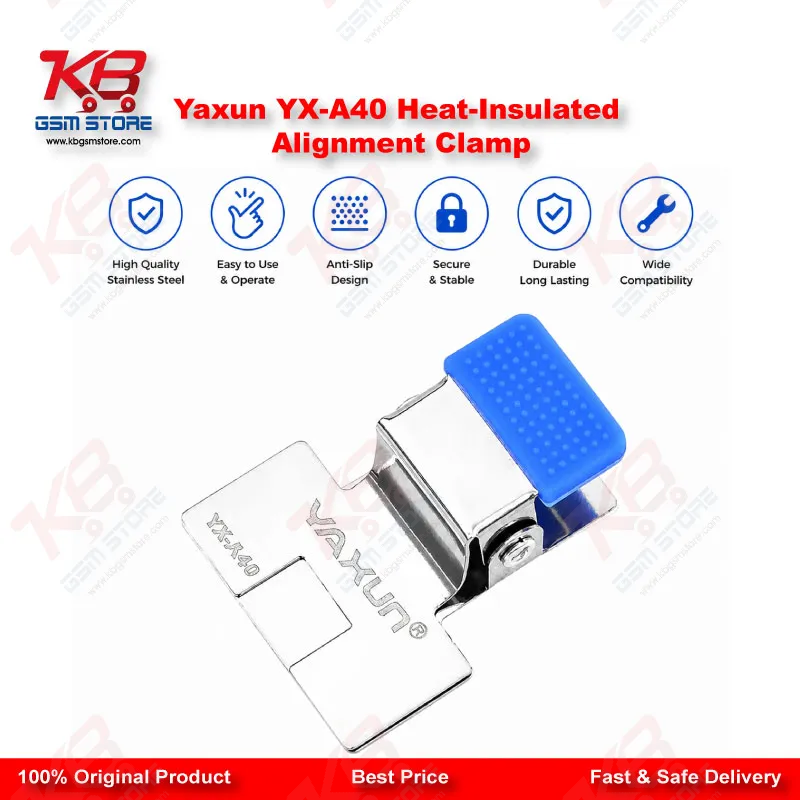

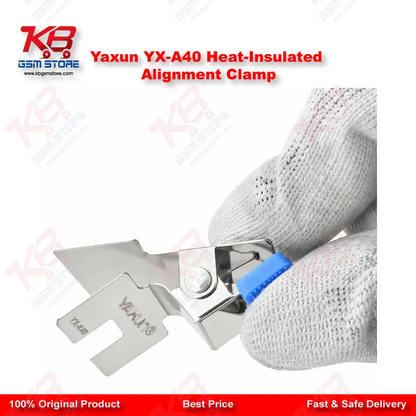

Yaxun YX-A40 Heat-Insulated Alignment Clamp – FPC & Display IC Soldering Fixture

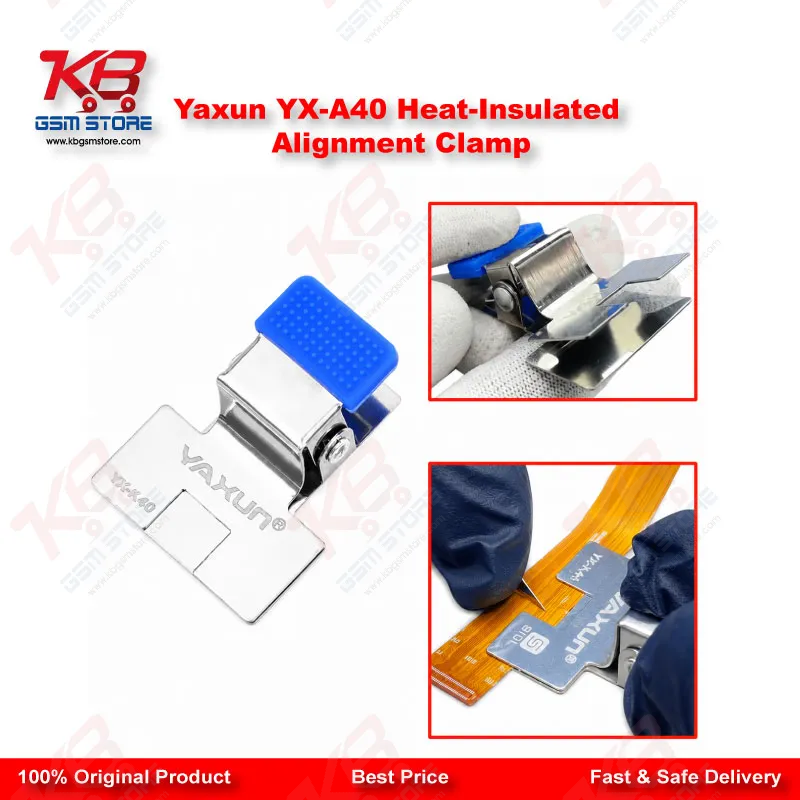

When you're doing display IC change karna under a microscope, the ribbon cable is usually the first thing that ruins your soldering angle. It shifts, lifts at the edge, or gets pulled by your own iron — and one bad flex movement can crack a pad you just reflowed cleanly. The Yaxun YX-A40 exists for exactly this problem. It's a dedicated alignment clamp built to hold FPC and ribbon cables steady while you work, so the cable stays exactly where you positioned it from the first touch of solder to the last.
The clamp uses a heat-insulated build, which matters more than it sounds. Soldering irons run close to 300–400°C at the tip, and any metal clamp near that heat either burns your fingers or transfers enough warmth to soften the plastic around the FPC connector. The YX-A40's insulated design keeps that heat from traveling into your hand or into the cable's plastic backing, which protects both you and the flex during longer soldering sessions.

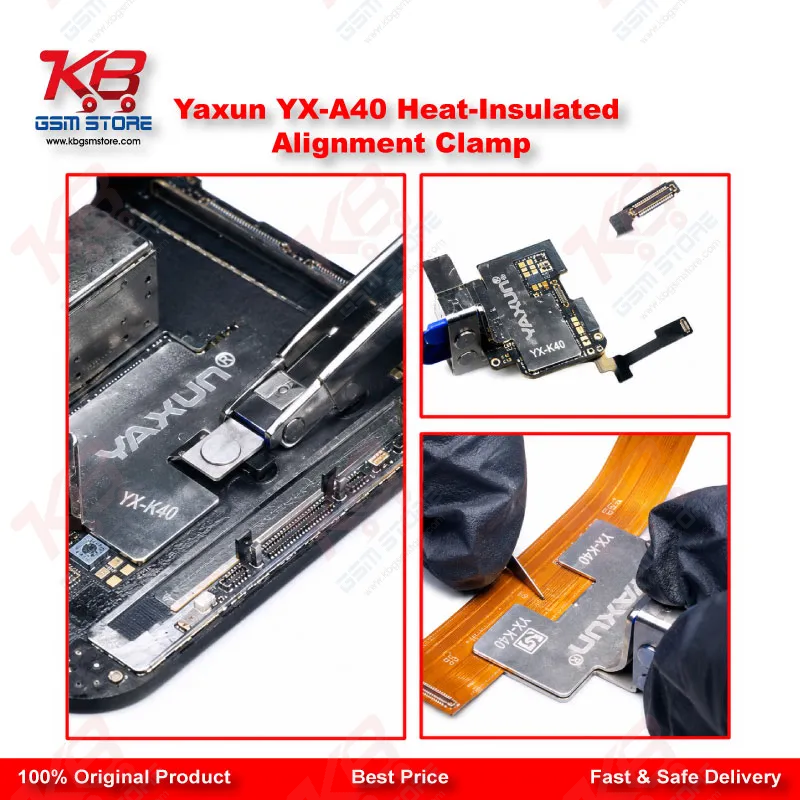

In a typical repair workflow, this clamp sits between "board prep" and "reflow." You've already separated the screen, exposed the display IC or the damaged trace, and you're ready to either replace the IC or run a jumper across a lifted pad. Before you touch solder to the board, you clamp the ribbon cable in position with the YX-A40. This stops the classic problem where the cable creeps a millimeter during soldering and misaligns the connector pins — something that's nearly impossible to catch until the screen doesn't power on after reassembly.
For jumper lagana work specifically, the clamp is even more useful. Jumper wires need a completely stationary cable end while you tack down the wire, because any shift breaks the fragile bond before it sets. Technicians doing frequent hang on logo or dead-after-flash repairs where a jumper fixes a broken data line will find the clamp cuts down on failed first attempts significantly.
The moderate clamping force is a deliberate design choice — it's strong enough to prevent movement but gentle enough that it won't crease or tear the flex, which is a real risk with cheaper clip-style holders that clamp too hard on delicate ribbon material. That balance matters most on iPhone and high-density Android flex cables where the FPC layers are thin and easily damaged.
Because it's compact, the YX-A40 doesn't compete for space with your microscope arm or hot air nozzle — a common frustration on a busy repair bench where every accessory needs to fit around the board without blocking your view or your iron's approach angle.
This is a workshop tool, not a diagnostic one — it doesn't fix a dead phone or a boot loop issue by itself, but it removes one of the most common causes of a failed reflow: a cable that wouldn't hold still. For technicians doing repeat display IC and jumper wire work, it becomes a permanent fixture next to the soldering iron rather than an occasional-use accessory.
