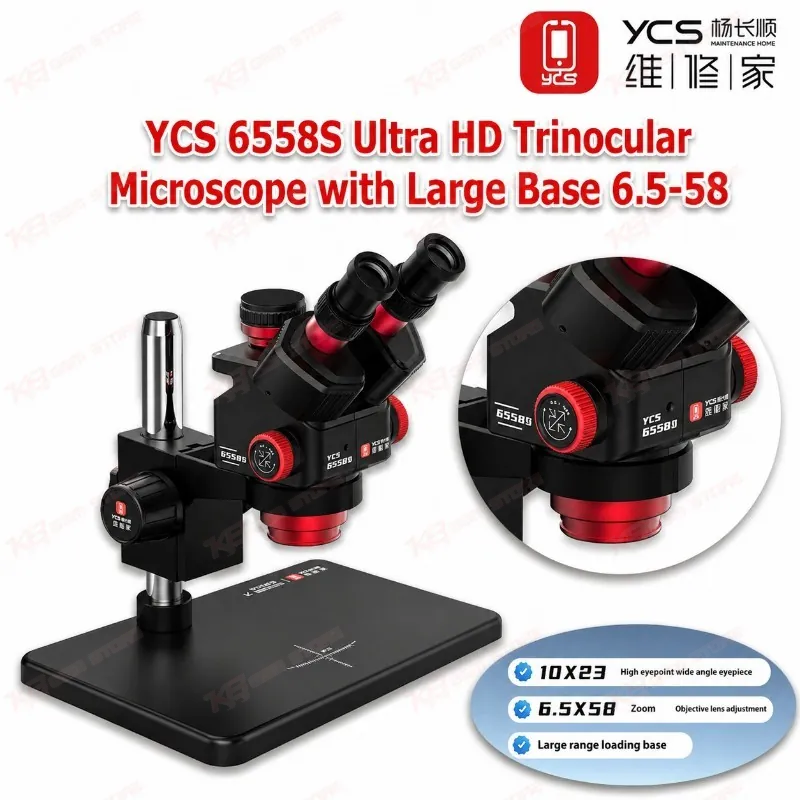

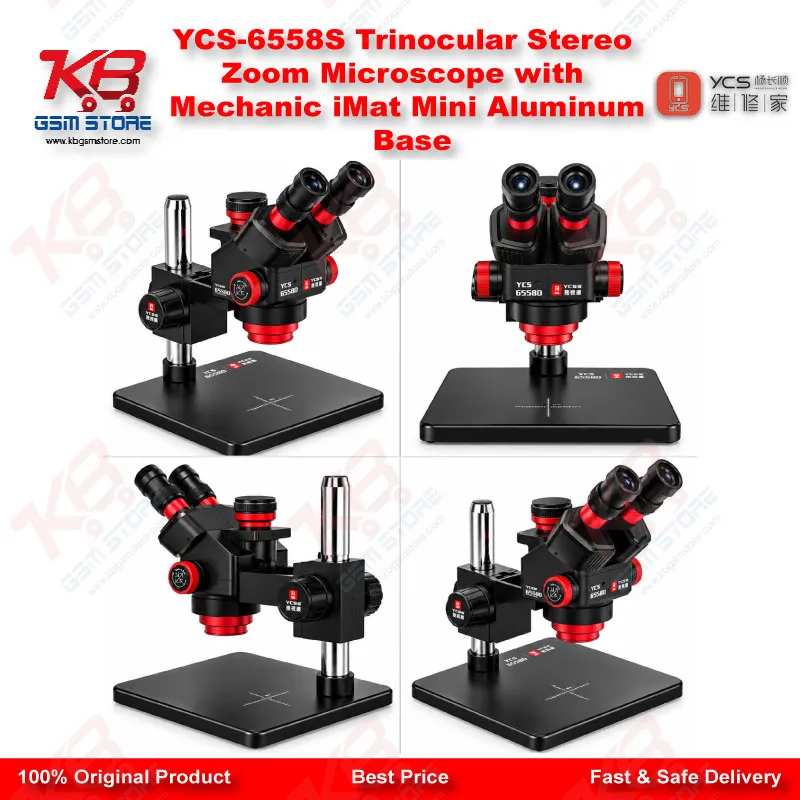

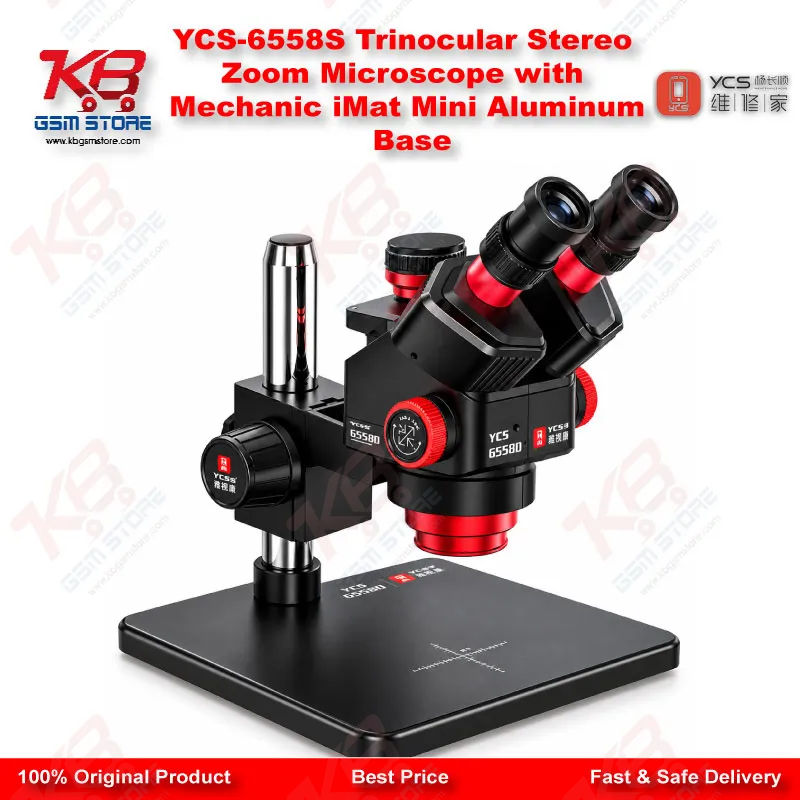

YCS-6558S Trinocular Stereo Zoom Microscope with Mechanic iMat Mini Aluminum Base
Complete Microscope and Micro-Soldering Station for Mobile Repair
Every repair bench in Pakistan hits a point where a loupe and a desk lamp stop being enough, usually the day a customer walks in with a dead phone, a cracked CPU joint, or a charging issue that traces back to a hairline crack under a filter capacitor. The YCS-6558S Trinocular Stereo Zoom Microscope with Mechanic iMat Mini Aluminum Base gives you a complete inspection and micro-soldering station in one bundle: a trinocular zoom head from YCS and a heat-resistant aluminum work platform from Mechanic.

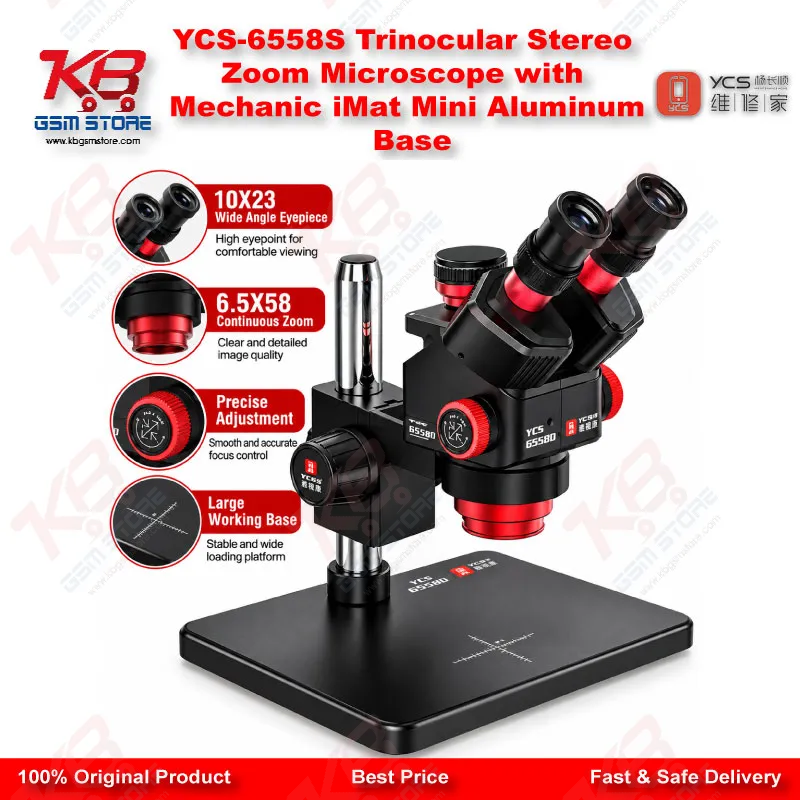

Continuous 6.5X–58X Stereo Zoom Magnification
The optical side runs a continuous 6.5X to 58X zoom, which comes from the 0.65X–5.8X zoom objective working together with a pair of WF10X/23mm high eye-point wide-angle eyepieces. At 6.5X you see a whole section of the logic board, with the PMIC area, the charging circuit and the connector row in one frame, so you can trace a line from the charging port to the charging IC without moving the board. Turn the metal zoom knob toward 58X and the same view narrows down to the smallest SMD capacitors, the bare pads under a removed IC, and the tiny solder bridge that puts a short on the VBAT line. The zoom stays continuous rather than stepped, so you never lose your target between magnification jumps, and that matters when you track a short with a multimeter probe in one hand and tweezers in the other.
45° Inclined Head with 360° Rotation
The head sits at a 45-degree incline and swivels a full 360 degrees, so you can turn the eyepieces toward your seat whether the stand sits to your left, your right, or straight ahead on a crowded bench. The 23mm field eyepieces and high eye-point design let you keep your eyes at a comfortable distance from the glass, which cuts fatigue across a long day of board work, especially in shops that close twenty or thirty hardware jobs before evening.
Trinocular Camera Port with Synchronous Zoom
The third port is what separates a trinocular model from a binocular one. The YCS-6558S uses a 0.5X CTV adapter with synchronous zoom, so the camera image and the eyepiece image zoom together, and your monitor shows exactly what your eyes see when you turn the knob. Connect an optional HDMI camera to that port and you can record repair videos for your shop's YouTube channel or Facebook page, show a customer the corroded area before you quote a price, or guide a junior technician on a big screen while you work. For training institutes, the same port lets a full class follow a reballing job live on one display instead of crowding around one set of eyepieces.
144-LED Ring Light with Touch Brightness Control
Lighting comes from a 144-LED ring light that clips onto the objective with a snap-on fit. The ring spreads light evenly around the lens, so you get no dark shadows under tall parts like shield frames and inductors, and touch control lets you set brightness for a shiny tinned pad or a dull, burnt PCB. A dustproof lens shields the objective glass from flux smoke and solder splash, which every bench throws up the moment hot air work starts.
Mechanic iMat Mini Aluminum Alloy Work Platform
The Mechanic iMat Mini turns the bottom of this setup into a real working platform instead of a plain metal plate. Its 330 × 245 mm aluminum alloy body gives the stand a solid, stable footprint, so the head stays steady when you press down with a soldering iron or slide a board under the lens. On top, a high-temperature silicone insulation pad handles heat up to 500°C, so you can rest a board under hot air directly on the mat without scorching the surface. The aluminum body draws heat away fast, resists corrosion from flux and IPA, and holds its shape through years of daily bench use.
Built-In Screw Storage, Precision Scale and Anti-Static Protection
A dedicated screw location area keeps tiny phone screws in one place during disassembly, which saves you from hunting the floor for a missing screw after you close a customer's phone. A precision scale square along the edge of the work area helps you line up boards and judge component sizes, and you can lift the silicone pad off to clean or replace it once flux residue builds up. The anti-static surface protects sensitive ICs while you handle them.
Practical Workflow for Mobile Phone Motherboard Repair
Now think about how this bundle fits your daily repair flow. A phone comes in stuck in a boot loop issue or hang on logo, flashing fails, and the box points to a hardware fault. You open the phone on the iMat Mini, park the screws in the screw zone, and place the board under the YCS-6558S at low zoom to spot corrosion, missing components or a lifted pad. Once you find the suspect area, you zoom in, heat the IC with your hot air station, lift it, and clean the pads with your soldering station and wick while you watch every pad at high magnification.
Ideal for CPU Reballing, eMMC, UFS and ISP Work
For an eMMC or UFS chip, you reball it with your reballing kit, seat it back, and check alignment under the microscope before reflow. When a dead phone needs a direct chip read or write, you solder ISP points under the lens, connect your eMMC programmer or UFS adapter, and run your test box knowing every jumper wire sits on the correct point.
Supports iPhone, Samsung, Oppo, Vivo, Infinix and Tecno Repairs
Network issue repairs on the RF section, display problem repairs at the FPC connector, and charging issue work around the charging IC all follow the same pattern: find the fault at low zoom, fix it at high zoom, and confirm the joint before reassembly. For shop owners in Pakistan, this bundle solves a common buying headache, because you get the optics and the work platform as one matched set and skip the hunt for a separate heat mat or a makeshift base. Pair it with a sturdy PCB holder for stacked boards, a reliable multimeter for short tracing, and a camera on the trinocular port, and one bench handles iPhone, Samsung, Oppo, Vivo, Infinix and Tecno board work with the same setup.
Upgrade Your Mobile Repair Workshop with YCS-6558S
Most technicians move to a stereo zoom microscope like this one after outgrowing a magnifier lamp, then add a camera or extra lighting as their CPU and board-level jobs grow, so the trinocular head leaves room for that upgrade path without replacing the microscope. Order the YCS-6558S with the Mechanic iMat Mini from KB GSM Store and set up a bench that is ready for board-level work from the first day.
